Cartek GT Battery Isolator Kit with Red Buttons

The Cartek Motorsport GT Battery Isolator is a very small and highly reliable alternative to the traditional mechanical master-switch. The unit has been designed to overcome all of the problems and restrictions associated with mechanical and electro/mechanical safety cut-outs. When fitted to a race car this solid state battery isolator simultaneously isolates the battery and kills the engine immediately when triggered in accordance with FIA safety regulations. This system has been designed to simplify installation thereby saving time and reducing build costs. Features
- Fully electronic with no moving parts - Totally sealed against water and dirt - Completely resistant to shock and vibration - Fully integrated with built in alternator run-down circuitry - No extra components required - Driver operation by a single internal ON-OFF button/switch - External operation by single or multiple 'strike' button(s) - Buttons / switches connected to Isolator using light weight wiring - Mounts close to battery for reduced cabling - Very small and weighs just 120g - Designed and manufactured in UK using high quality components How it Works
The Cartek Battery Isolator GT provides two functions. The first is to disconnect the Battery from all Electrical Circuits. The second is to kill the engine. Battery Isolation
Battery Isolators work by being fitted in between the negative side of the battery and the chassis. When the external kill button has been activated or the internal button been switched to the off state, then the Battery Isolator will disconnect the negative side of the battery from the Chassis. This means that no power can get to any of the electrical circuits as there is a break in the circuit. Engine Kill
The Cartek Battery Isolator GT kills the engine by taking in a fixed 12v input and sending a 12v output that would power your Ignition or ECU. When the negative side of the battery has been disconnected it will also cut the 12v output powering your Ignition or ECU. This will kill the engine. Built in Protection
The Cartek Battery Isolator GT comes with built in alternator run down protection meaning no extra wiring and no extra components. How Is It Controlled?

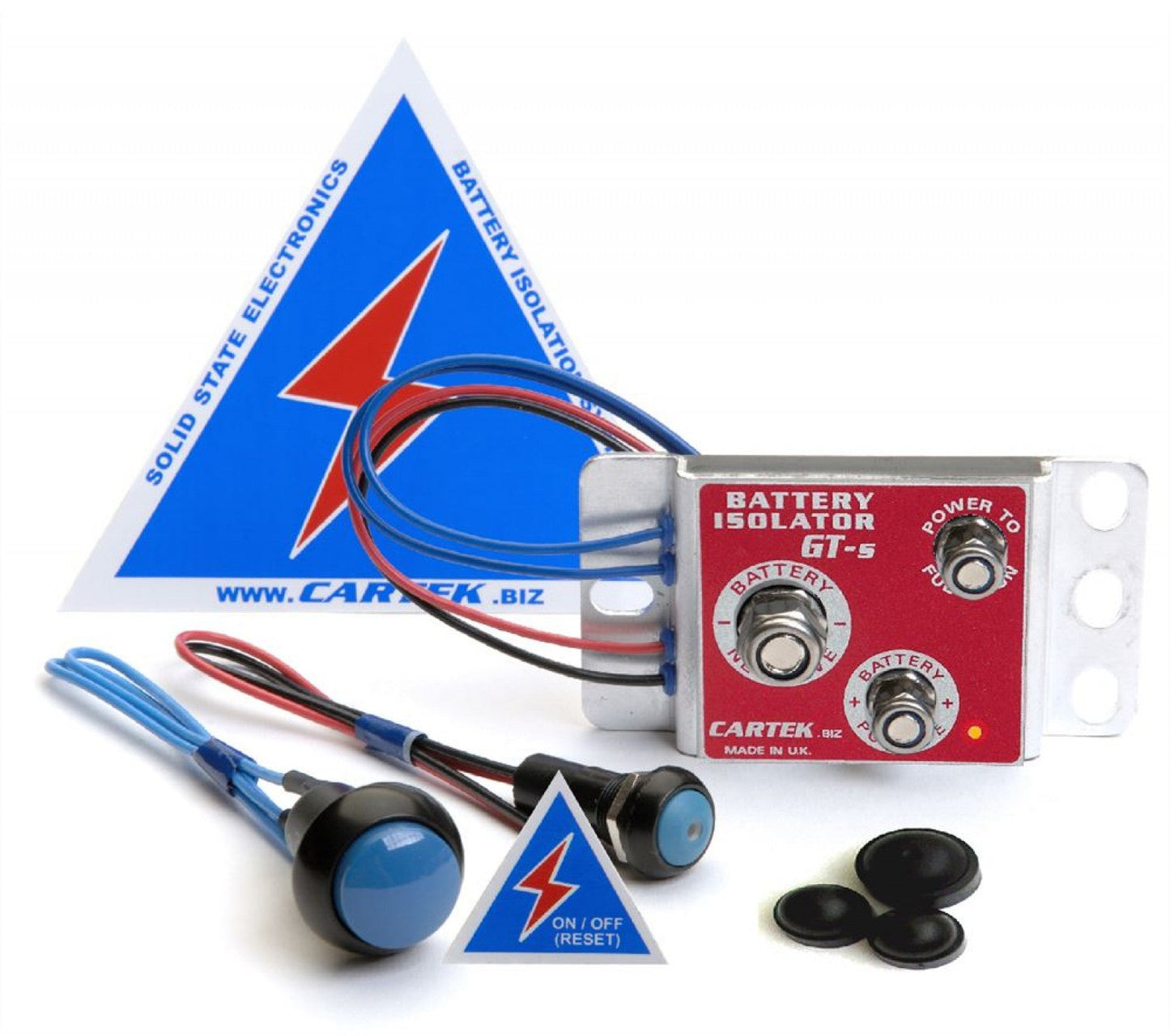

The two electronic isolation circuits are controlled by microprocessors and incorporate various safety systems including over-temperature and over-current monitoring. These microprocessors also monitor the kill switches/buttons for instant activation without false triggering. Kit Contents: - Battery isolator GT - 1 x Internal button - 1 x External button - 1 x Safety stickers pack Specifications

Size	L = 92mm, W = 50mm
Weight	140g
Battery negative terminal	M8 stud.
Positive power terminals	M6 stud.
Operational Voltage	7v - 18v
Current consumption	50mA ON, 7mA OFF
Battery negative switching current	600A cranking, 2000A surge
Positive power switching current	40A.
Operating Temperature	-10 -+85 degrees C
Storage temperature	-40??C - +125??C
