Holley 550-904 Fuel Injection Systems

Holley 550-904 Fuel Injection Systems

Take Control Of Your Ls Engine With Terminator X! Don'T Settle For A Junkyard Ecu With A Cumbersome Tuning Interface When You Can Have Complete Control Of Your Engine, Self-Learning Fuel Strategies And The Proven, Race-Winning Technology Of Holley Efi At A Budget-Friendly Price! Terminator X Features Real-Time Fuel Learn, High Impedance Injector Drivers, An Integrated 1Bar Map Sensor, And 4 Programmable Inputs And Outputs. The Inputs And Outputs Are Ideal For Electric Fans, Boost Control Solenoids, Progressive Nitrous Control, And Much More. Terminator X Comes Fully Loaded With Base Maps For Common Ls Engine Combinations To Get You Out Of The Garage And On The Road/Track Fast. The 3.5" Touch Screen Lcd Handheld Contains An Easy To Use Calibration Wizard As Well As Tuning And Gauge Display Functions. Also Included Is Holley Efi'S Industry-Leading, Easy To Use Software Suite That Allows Full Laptop Access For Advanced Users. Whether You Are Building A Budget Beater Or A Boosted Race Car, Terminator X Has The Features And Technology You Need At A Price That Won'T Break The Bank!

• For Gm Ls Engines With 24X Crank Reluctor And Multec 2 Injectors
• Real-Time Fuel Map Learn, Takes The Guess Work Out Of Tuning Your Base Fuel Table.
• High Impedance Injector Drivers Will Safely Power Most Stock Ls Injectors, And Holley Efi Injectors. Injector Support Chart Provided In The Instructions (Will Not Control Low Impedance Injectors)
• All Of The New Terminator X Systems Utilize The Bosch Lsu 4.9 Wideband To Relay Afr Information To The Ecu For Accurate Reading And Precise Tuning Control.
• Map Sensor Vacuum Hose Adapters (1/8Th € ¼ And 3/16Ths)
• 4 Outputs € Ground, Pwm - , For Accessories Such As; Fans, Boost Control, Nitrous Control, Iac Kit, And More
• 4 Inputs € 12V, Ground, 5V, And Frequency, For Things Such As Additional Pressure Sensors, Or Activation Triggers For Nitrous Activation, Or A Trans Brake
• Boost Control € Boost Vs Time, Boost Vs Gear, Boost Vs Rpm, Boost Vs Speed, Boost Safeties
• Nitrous Control € Single Channel Of Wet Or Dry, Progressive Or Non-Progressive, Rich/Lean Safeties, And Target Closed Loop Afr
• On-Board Diagnostic Leds For: Ecu Power € Engine Run € Wideband Status € Tps Calibration € Crank Signal €Cam Signal. Allow You To Identify Any Critical Engine Issues At A Glance
• Advanced Tables € 4X 1D Tables, 1X 1D Per Gear Table, 4X 2D Tables, 1X 2D Per Gear Table, Can Be Used For Any Custom Tables You Can Dream Up, Such As Flex Fuel Sensor Offset Table, Or A Custom Fuel Or Oil Pressure Safety!Adjustable Through Included 3.5€ F
• The Included 3.5" Touchscreen Handheld Contains A Calibration Wizard, That Allows You To Quickly Build A Base Tune For Any Ls Engine. Additionally The Handheld Provides Internal Data-Logging And A Fully Customizable Gauge Display.
• The Compact Ecu Size Allows You To Mount It Virtually Anywhere. Remember, Diagnostic Leds Must Face Up!
• Plug And Play Compatible With More Holley Efi Accessories Such As; Analog Style Gauges, Shift Lights, Various Modules, And Coming Soon, 12.3" Digital Dash Support!
• Free Efi Tuning Software For Complete Control Of Your Terminator X Power Plant

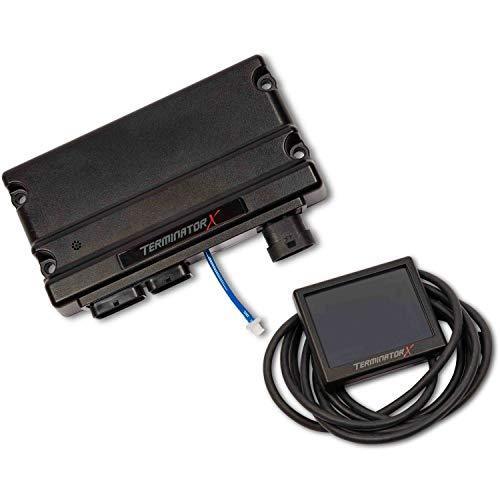

• Includes: 24X Ls Engine Main Harness - Multec 2 Injector Harness - Terminator X Ecu - Ecu Main Power Harness - Bosch Lsu 4.9 Wideband Oxygen Sensor - Input/Output Harness - And Assorted Vacuum Adapters.
