Ohlins Road & Track Coilover Suspension BMW M3/m4 (g80/g81/g81/g82) xDrive

A More Than 40 Year Long Tradition Of High-End Racing Commitments And State-Of-The-Art Solutions Within Advanced Suspension Technology Is Now Available For Street Cars All Over The World. The Focus Has Been Clear From The Very Beginning € Superior Road Handling Without Sacrificing Comfort In Your Day-To-Day Transports. The Time Of Compromises Is Over. All Shocks Have Suffered Through Vast Corrosion Tests According To Iso 9227. The End Result Is A Worldwide 2-Year Limited Warranty On All Of Our Products.

General Features:

• Patented Dfv Technology (Dual Flow Valve)
• Individual Height Adjustment
• Rebuildable
• Corrosion Salt Spray Tested (Iso 9227)
• 2 Year Warranty
• Approx. 10 Kgs Less Weight Compared To Standard Suspension

Features Front:

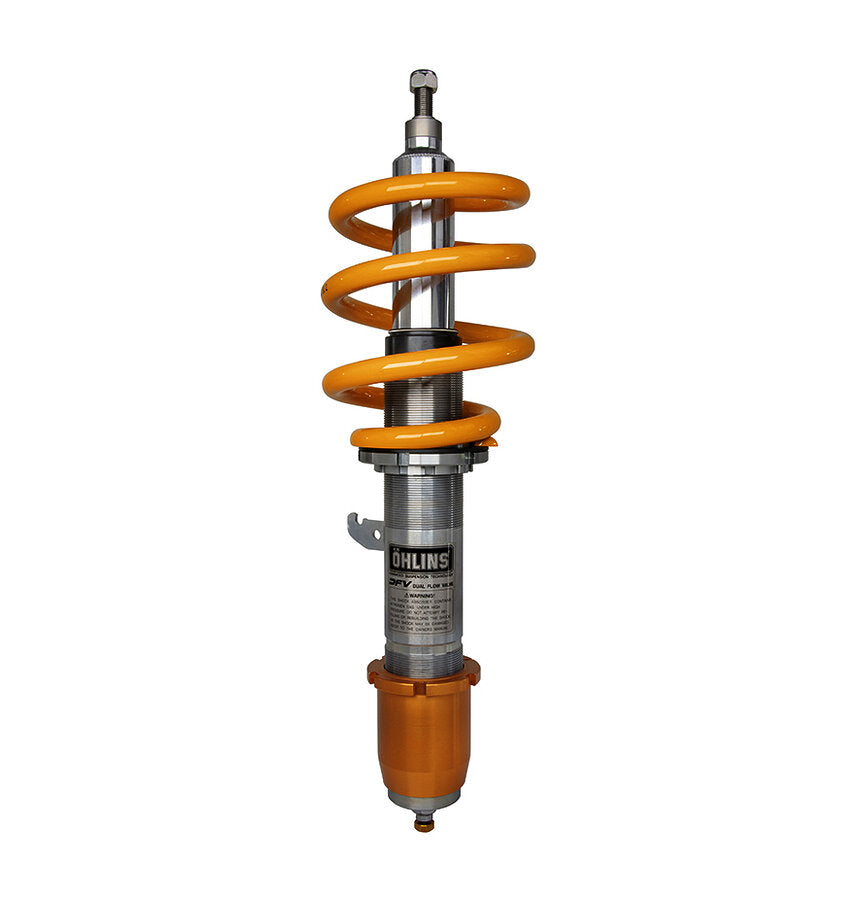

• Mcpherson Strut, Upside Down
• Compression And Rebound Damping With One Adjuster
• Spring Preload Adjuster
• Separate Length Adjustment
• Approx. 25 Mm Lower Than Standard With Recommended Setup
• Spring Rate 100 N/Mm
• Use With Original Top Mounts

Features Rear:

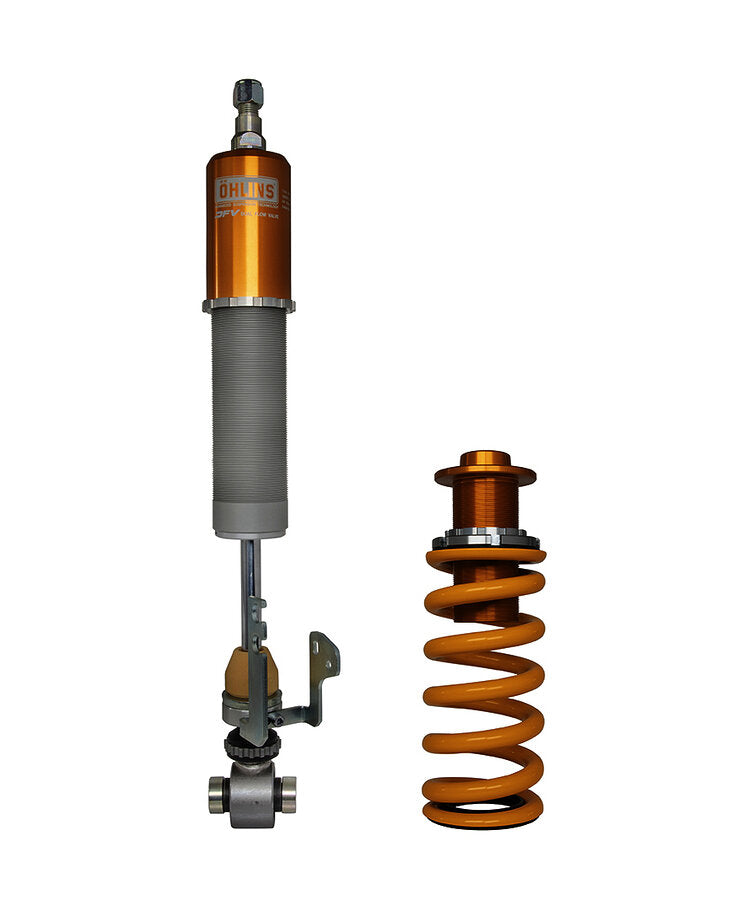

• Conventional Shock Absorber
• Compression And Rebound Damping With One Adjuster
• Spring Preload Adjuster
• Separate Length Adjustment
• Approx. 20 Mm Lower Than Standard With Recommended Setup
• Spring Rate 190 N/Mm
• Use With Original Top Mounts

Purchased Parts Package:

• Coil Over Kit Incl. Springs And Mounting Parts
• C-Spanner (For Spring Preload Adjustment)
• Owners Manual And Mounting Instruction
• Sticker Set

Edc Cancellation Kit:

• 35020-33

Cancellation Kits Are Not Included And Need To Be Ordered Separately.

Fits The Following Vehicles

• Bmw M3 (G80, G81) Xdrive, Year 2020 €

  • Type: G80, G81
  • Variants: Xdrive
  • Tuev Certificate In Preparation
  • Manufacturer Confirmation (Sui)
  • Goca In Preparation (Be)
  • Fits 4Wd Models Only (Xdrive)

• Bmw M4 (G82, G83) Xdrive, Year 2020 €

  • Type: G82, G83
  • Variants: Xdrive
  • Tuev Certificate In Preparation
  • Manufacturer Confirmation (Sui)
  • Goca In Preparation (Be)
  • Fits 4Wd Models Only (Xdrive)

Part Number
